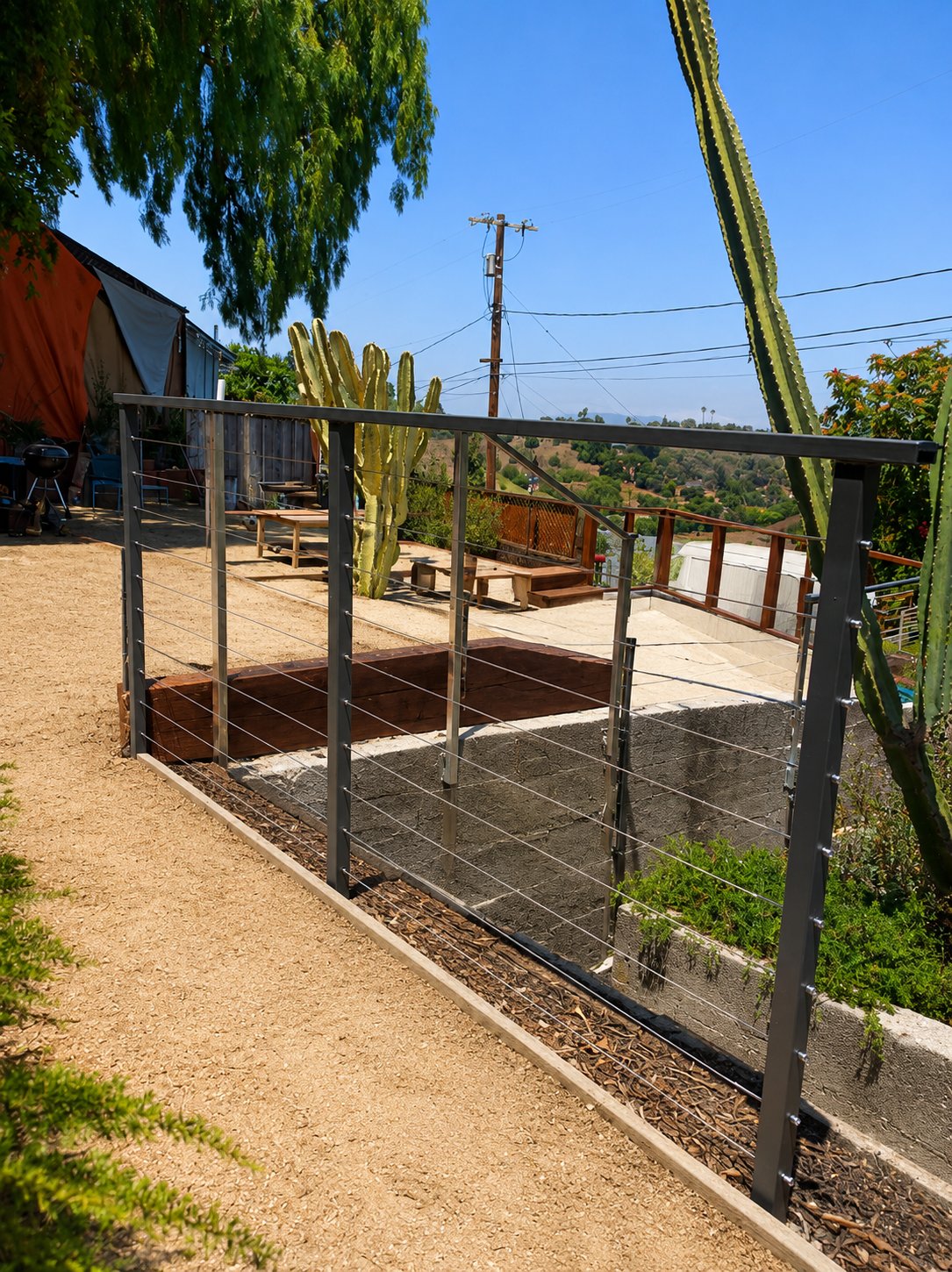

This Los Angeles property sits on a steep hillside lot — terraced retaining walls, decomposed granite paths, succulents and mature cacti, and a long view across the canyon. The owners wanted something around the upper terrace and along the stairs that kept everyone safe, met code, and disappeared visually so the landscape and the view stayed the stars. We built a custom cable railing system around the perimeter: black powder-coated steel posts welded with a flat top rail and tensioned stainless cables in between.

The brief

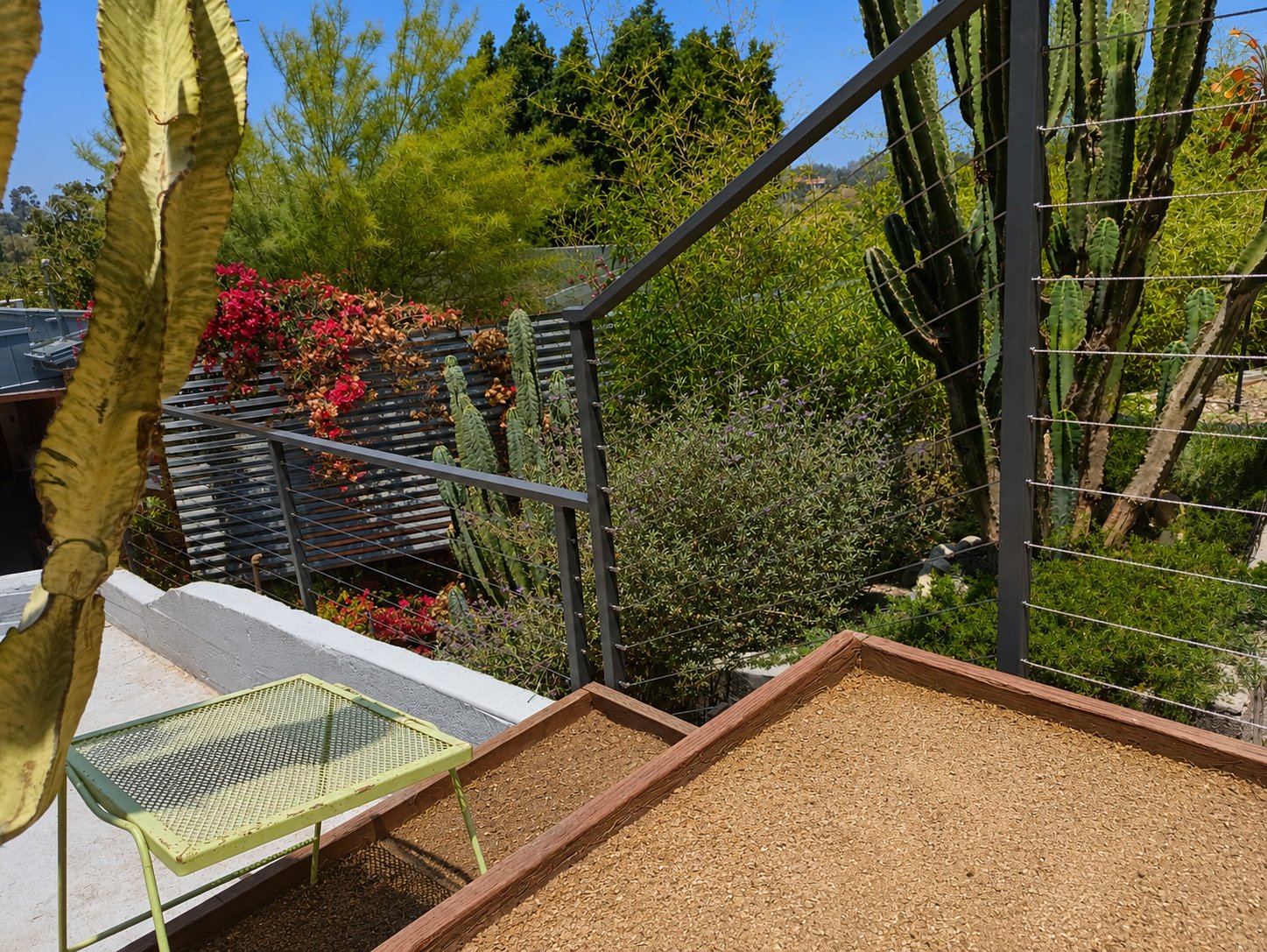

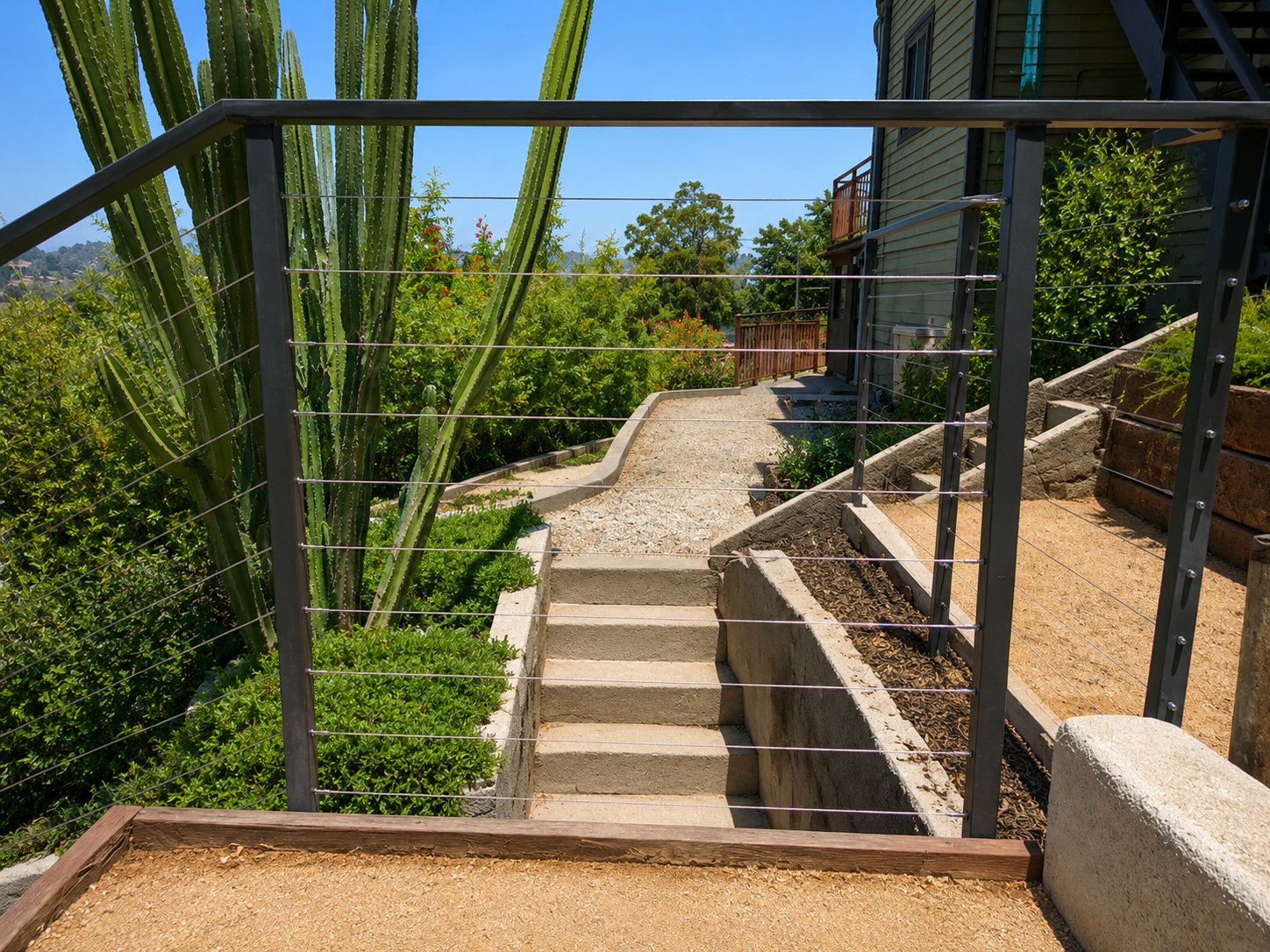

Three terraces, two flights of concrete steps, and a small backyard seating area — all sitting above a sloped garden where one wrong step would mean a fall. We needed a guard that satisfied the 42-inch height requirement and the 4-inch sphere rule for openings, but didn’t read as a heavy iron fence. The owners specifically asked for thin horizontal lines so the cables would look almost invisible against the planting and let the canyon view come through from inside the house and from every seating spot in the garden.

The system we built

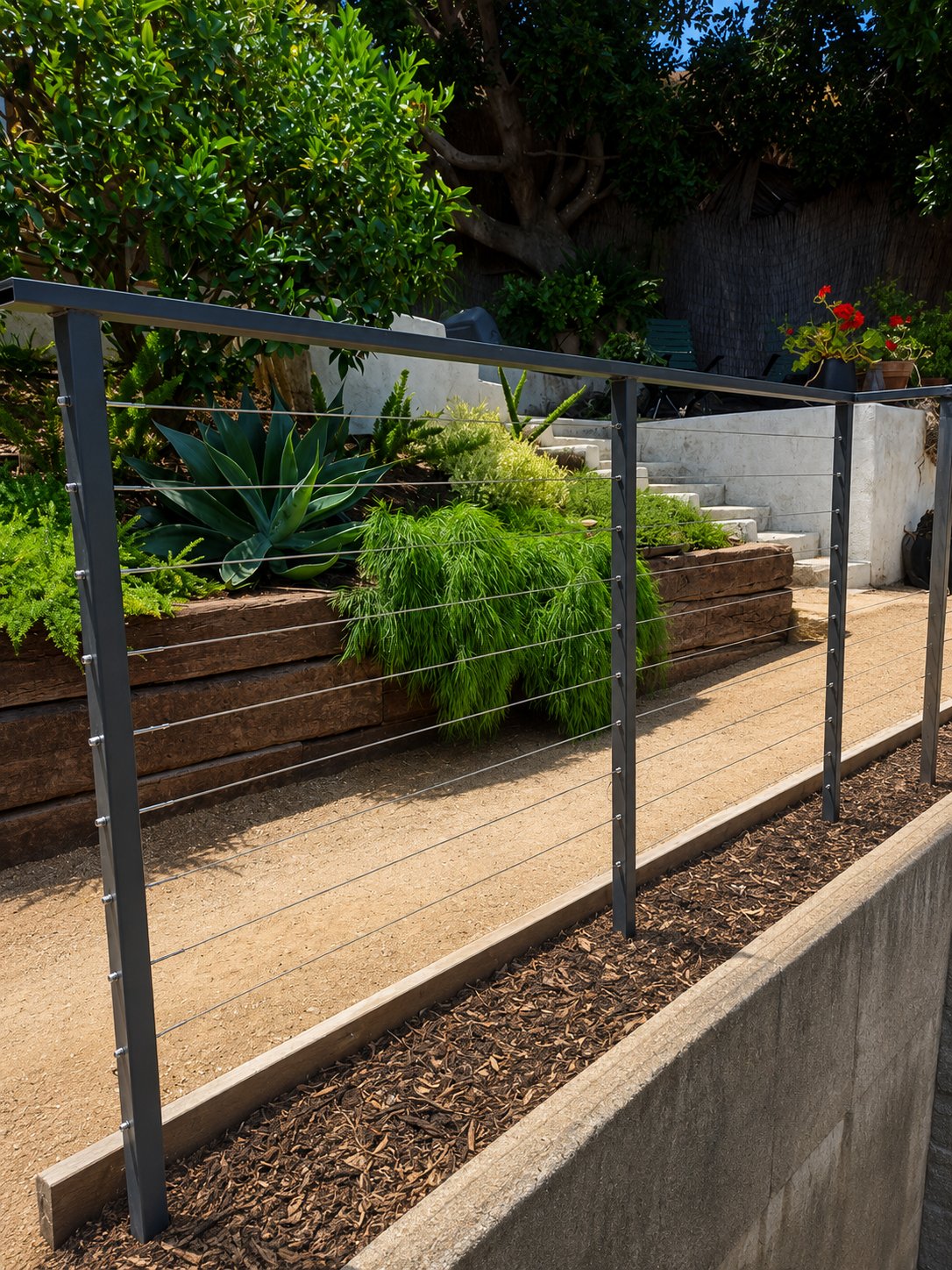

Posts are 2-inch square steel tubing welded to flat steel base plates, anchored straight into the existing concrete retaining walls with structural epoxy and stainless wedge anchors. The top rail is a flat 2-inch-wide bar welded across the top — clean, simple, and stiff enough that the cables can carry serious tension without bowing the posts. Top-rail height sits at 42 inches above the walking surface. Between every post, multiple runs of 1/8-inch 1×19 stainless steel cable run horizontally, each tensioned at fittings hidden inside the corner posts so the runs look continuous and the hardware stays minimal.

Why cable railing fits a hillside garden

Three reasons we keep coming back to cable on slope-side LA properties:

The view does not get cut up. Pickets and balusters interrupt sightlines every few inches; horizontal cable at 1/8 inch reads almost as a line at distance. Step back six feet and you stop seeing the system at all — what you see is the canyon.

It carries strong, looks light. Stainless cable at 1×19 construction has very low stretch and a high working load. Tensioned across short post bays it acts like a stiff guard, but visually it lands like trim instead of structure.

It works with any landscape. Native and drought-tolerant gardens — agave, prickly pear, bougainvillea, ornamental grasses — already have a lot of texture. A heavy railing fights that texture; cable disappears behind it. Black posts also pair well with the dark powder-coat hardware common on modern LA hillside homes.

Materials and hardware

Frame: cold-rolled steel tube, fully welded corners, ground smooth, powder-coated matte black for UV and corrosion resistance. The black coat holds up well to Los Angeles sun and is easy to touch up if it ever scuffs. Infill: type 316 marine-grade stainless cable — the same spec used on coastal projects — so it shrugs off smog, ocean air, and irrigation overspray. Tensioners are concealed swage-stud fittings; we set them with calibrated tools so every run reads the same tightness when you push on it. Anchors are stainless wedge type set in poured concrete walls; where the wall was hollow block, we used through-bolts with steel backing plates on the opposite face.

Code, safety, and how long it lasts

Los Angeles building code for an exterior guard at this elevation requires a 42-inch minimum top-rail height and a maximum 4-inch sphere through any opening — the cable spacing was sized accordingly. The top rail is stiff enough to pass concentrated and distributed load checks; posts are spaced so an adult leaning hard does not produce visible deflection. With marine stainless cable and powder-coated steel, expected service life is 25-plus years on a hillside lot, with only an occasional re-tension every few years if anything ever loosens.

Thinking about a cable railing project?

If you have a hillside garden, a balcony, a deck, or a stair run that wants to feel modern and open without giving up safety, cable railing is usually the right answer. We design and build the system to your geometry, not from a kit — that is how the runs stay tight and the lines stay clean even where the slope changes. Send a few photos and the layout; we will come out the same day for a free on-site estimate.
