Modern Cedar Wood Garage Door in Los Angeles: Horizontal Plank, Navy Trim, Before & After Stain

This Los Angeles home wanted a garage door that reads as architecture, not as a metal box bolted onto the front of the house. We built a modern horizontal cedar-clad garage door with a steel-framed sectional core, deep navy trim around the opening, and a hand-applied stain that brought out the cedar’s natural warmth. The before and after of the staining step is the part most people stop and stare at.

The brief

Two-car garage on a modern-traditional LA home with a navy-blue trim package and crisp white concrete driveway. The owners wanted something that matched the house’s clean horizontal lines, hid the typical garage-door panel breaks, and felt closer to a custom front-door than a standard residential garage door. The constraints: it still had to be a working sectional door (lifts and rolls overhead), it had to handle California sun, and it had to read modern from the street.

The build

The core is a standard insulated steel sectional door, sized to the existing 16-foot rough opening. On top of that we built a custom cedar cladding system: full-length tongue-and-groove western red cedar planks, milled smooth, laid horizontally and screwed down through the structural panel face into hidden cleats so no fasteners show. Plank seams are tight enough that from ten feet back the whole face reads as one continuous wood panel. The dark navy paint on the framing posts and soffit ties the door into the rest of the house trim and acts as a frame around the wood.

Before the stain

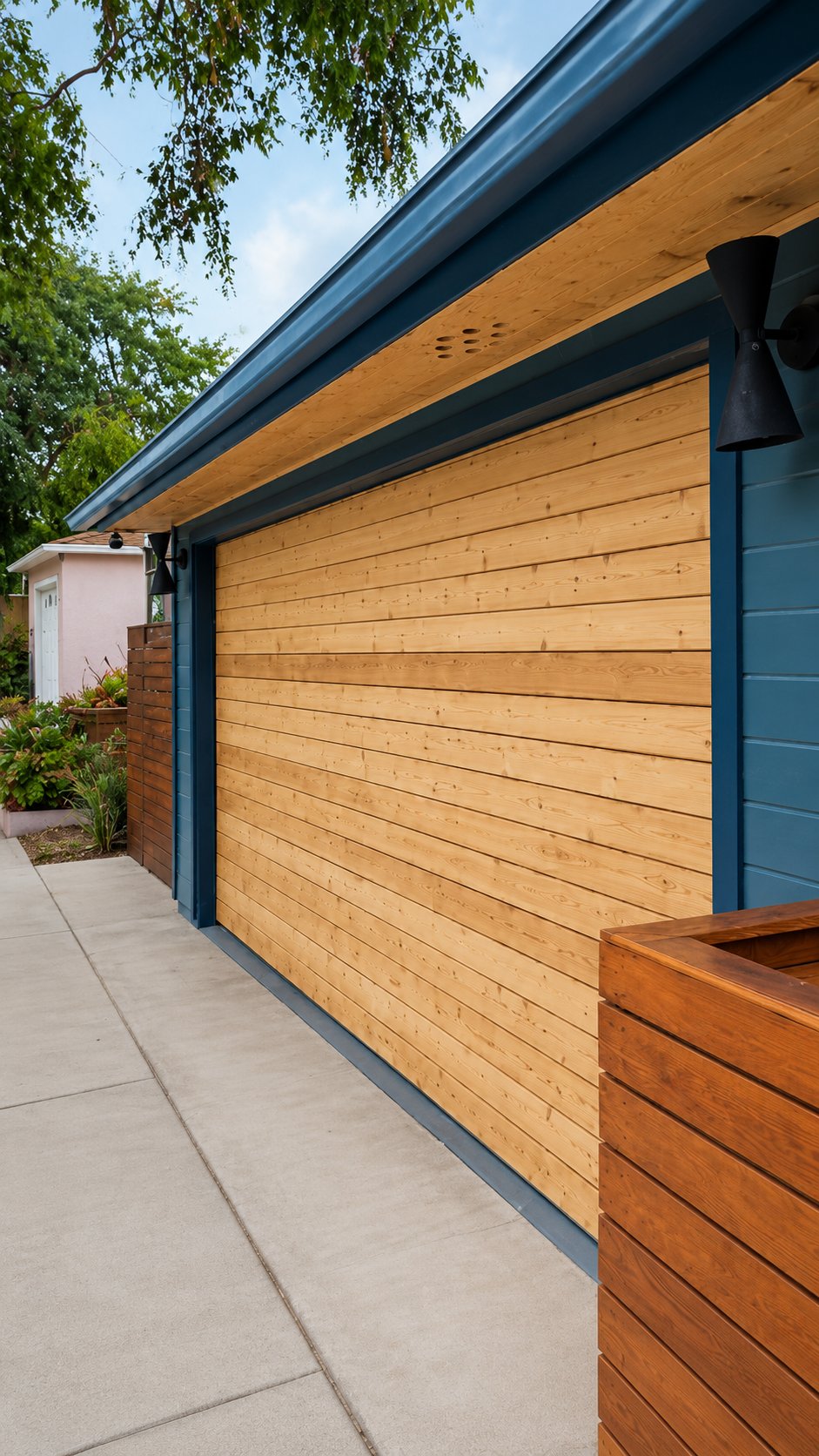

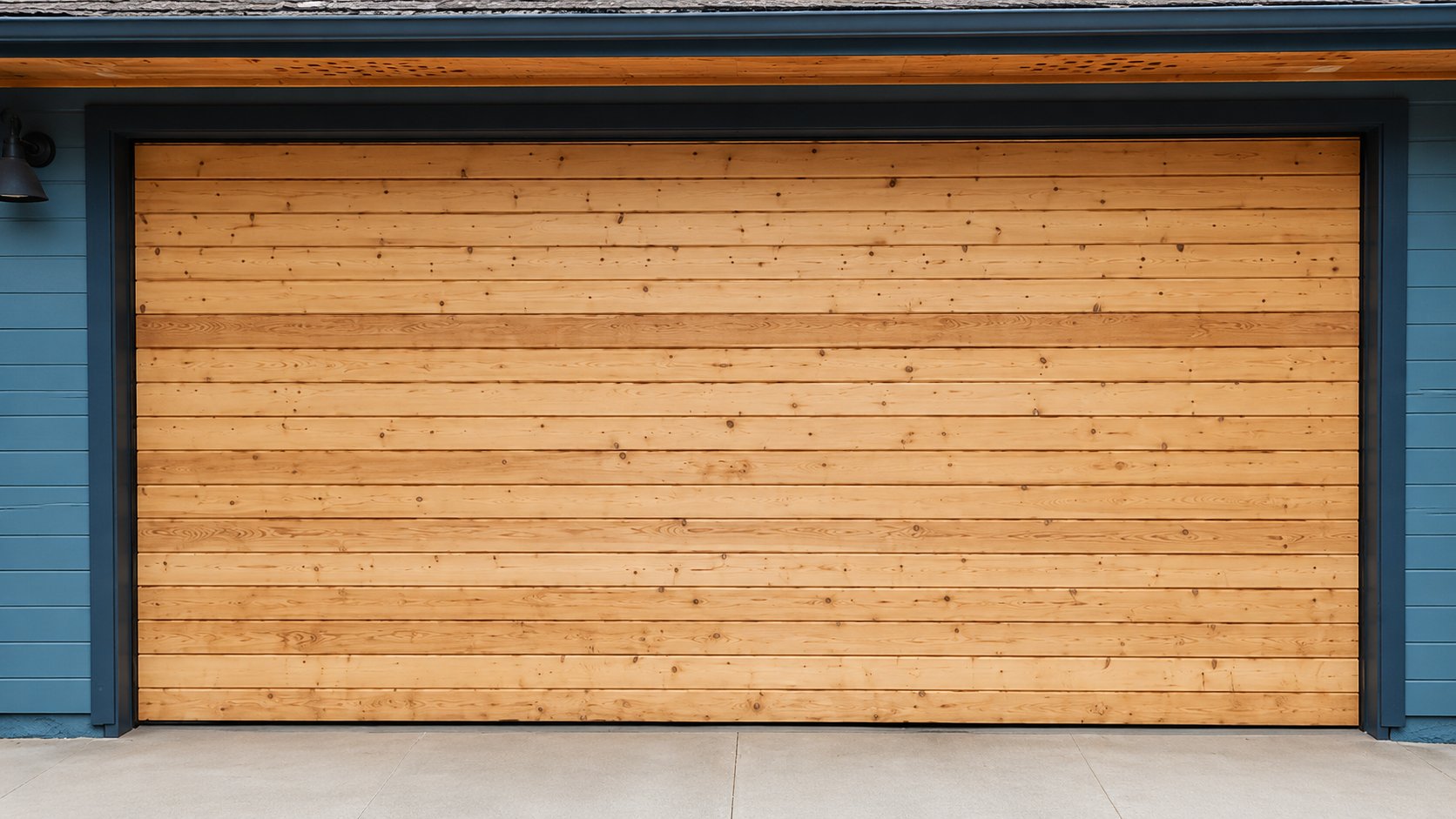

This is what raw western red cedar looks like the day after install — pale, slightly green where the heartwood meets the sapwood, with that fresh-mill scent. It is already a beautiful surface. A lot of clients ask us to leave it natural and let it silver over time, which is also a great look in LA’s dry sun. For this project the owners wanted the wood to feel warmer and richer against the navy, so we moved to a stained finish.

The stain

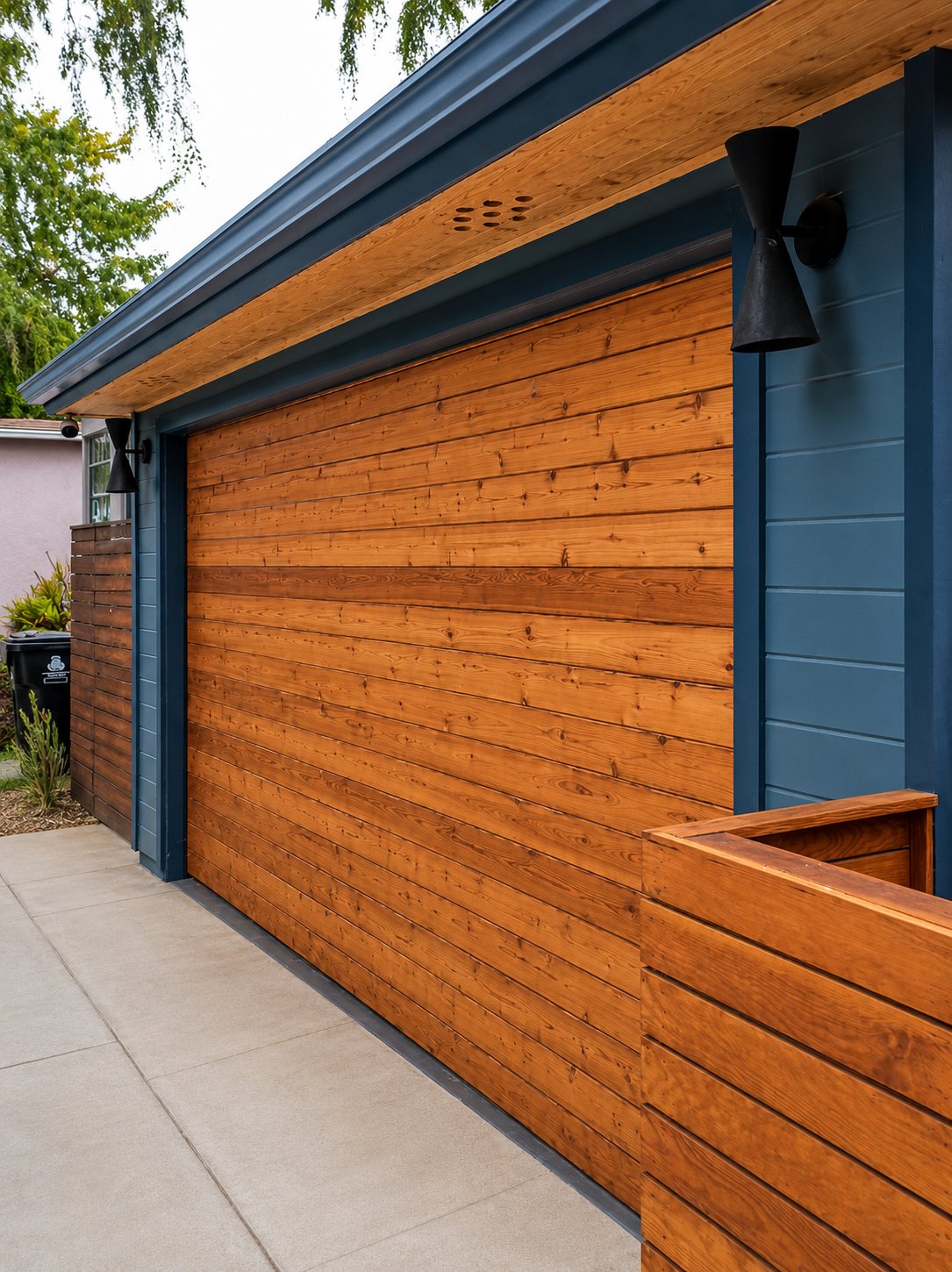

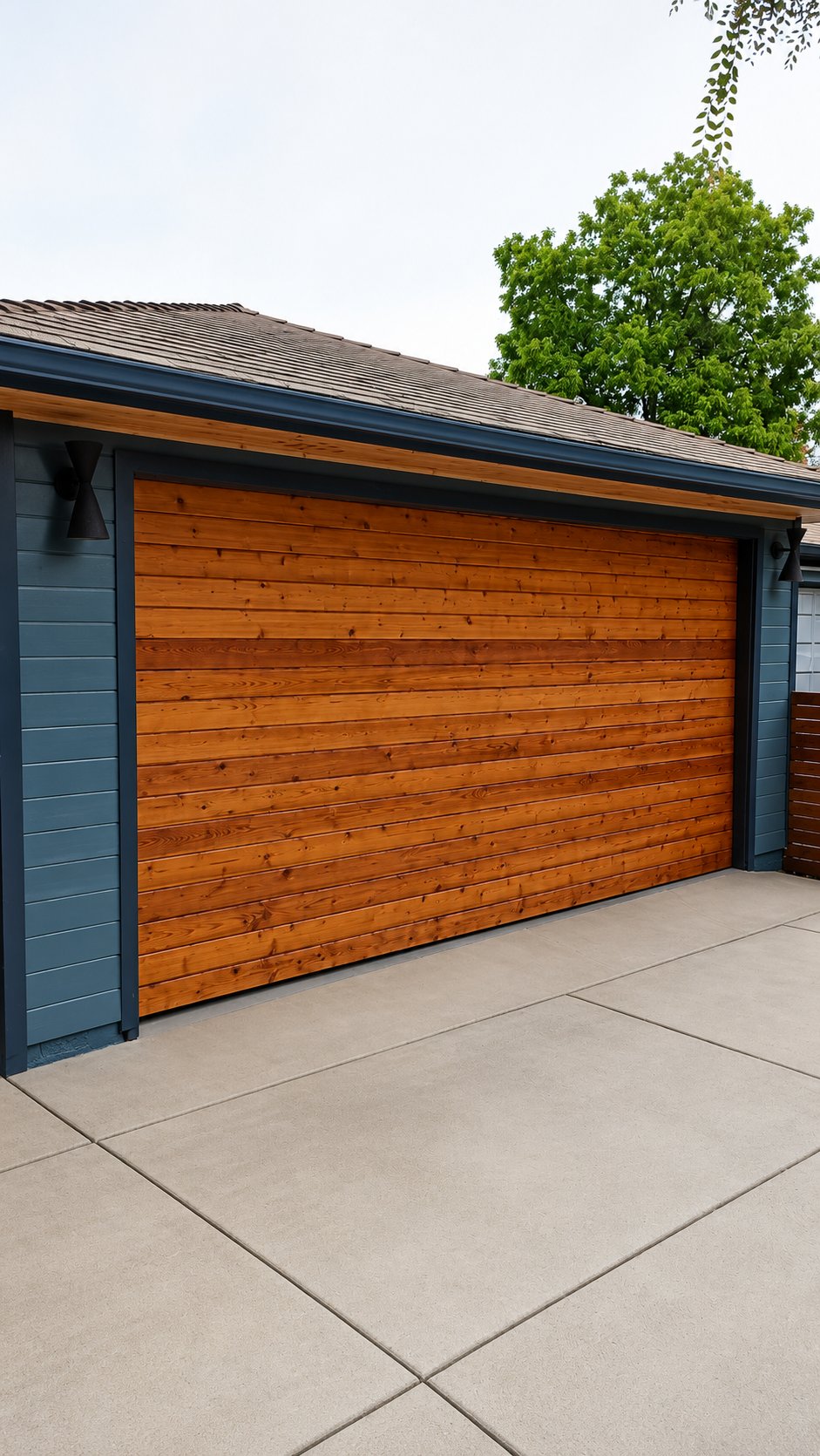

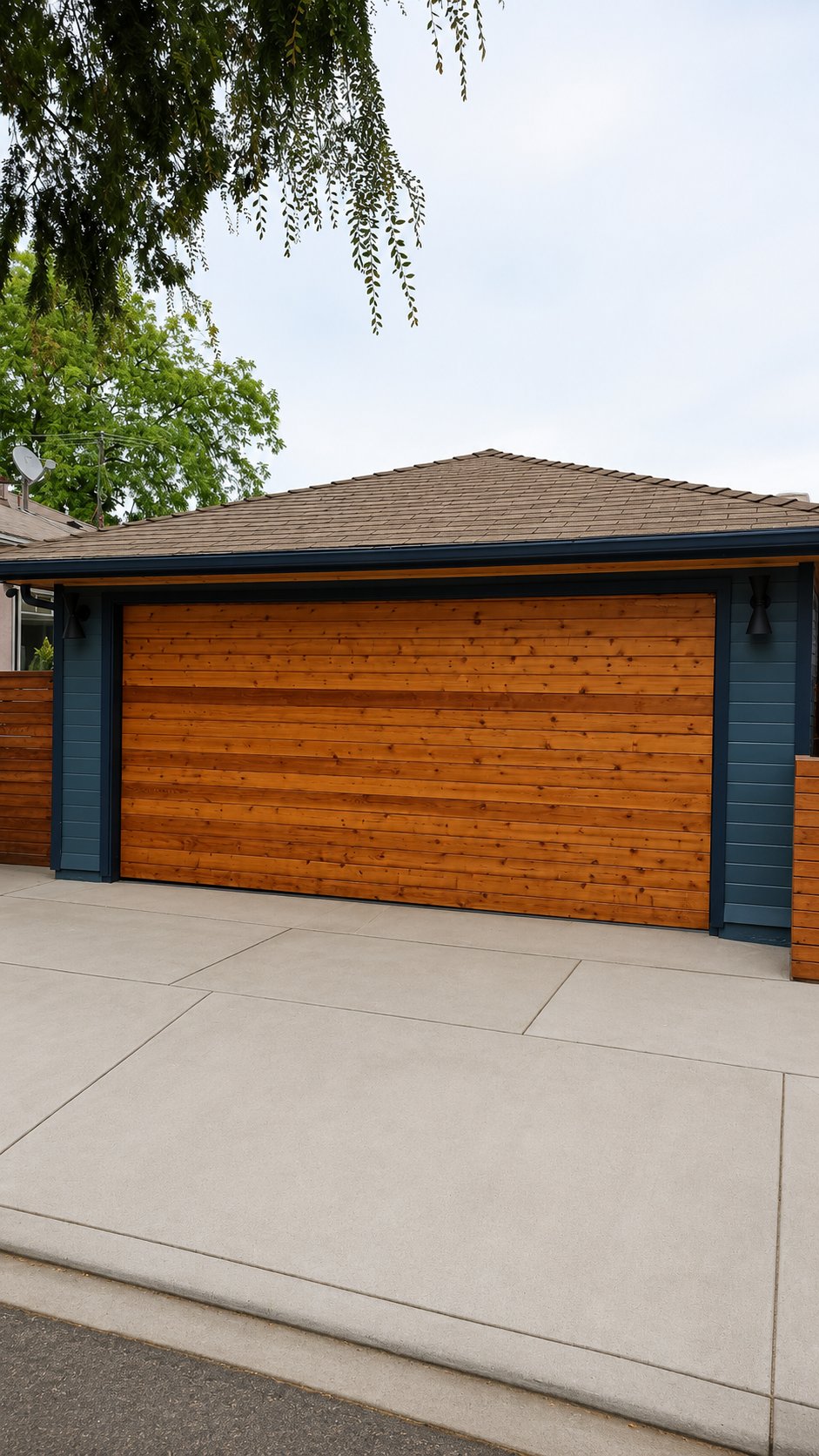

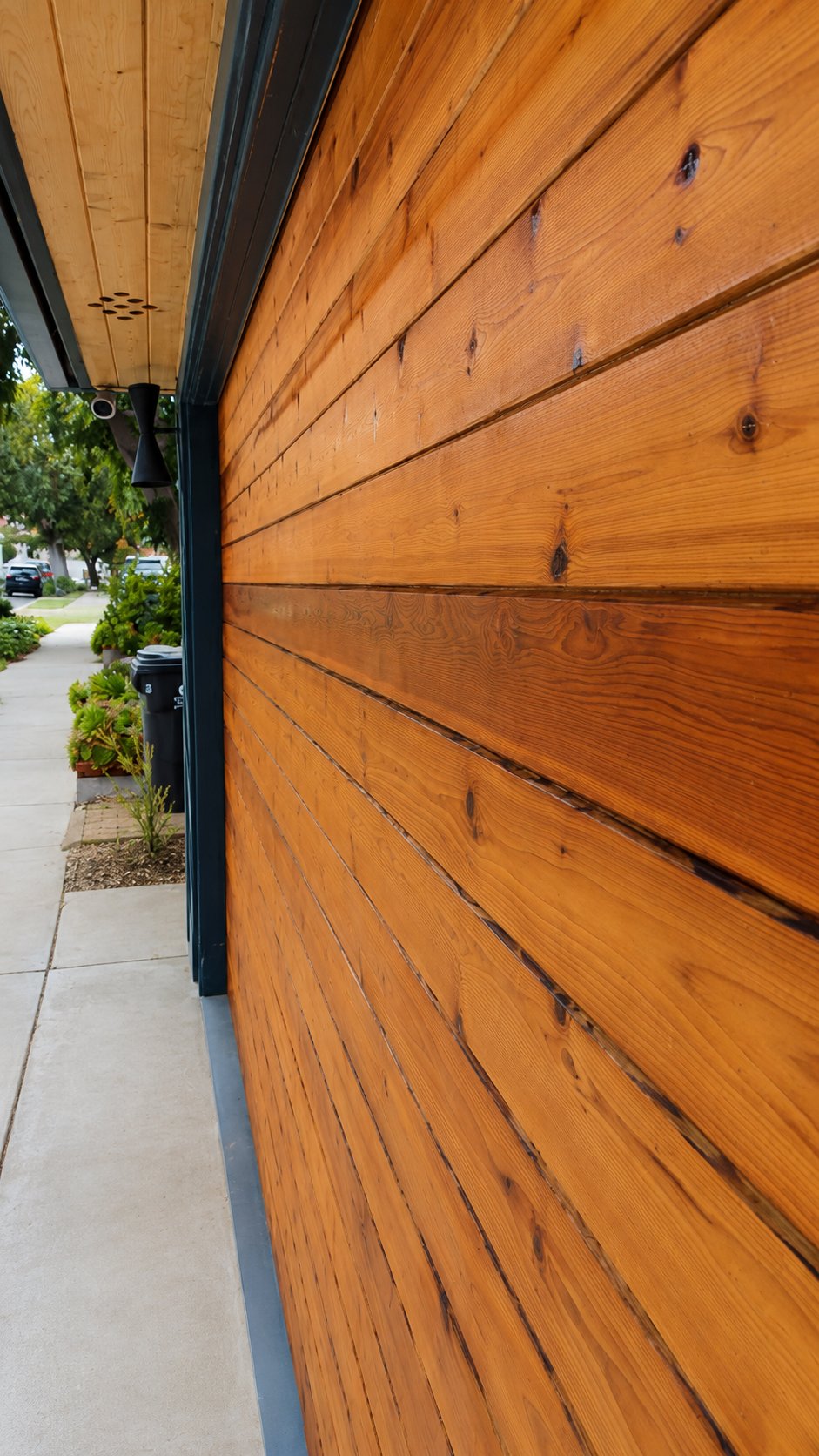

We hand-applied an oil-based penetrating stain in a warm honey tone — close to a medium cedar — using two coats with light sanding between, working with the grain. The stain darkens the wood, evens out the natural color variation between planks, and most importantly seals the surface against UV and moisture. Penetrating oil stays inside the wood, so it does not peel like a film finish. With one re-coat every 3-4 years it should hold this look for a decade or more on a south-facing wall.

Detail and hardware

Hardware is hidden behind the cladding — the door still works as a normal overhead sectional, with reinforced track to handle the added weight of the cedar. The dark sconces on either side of the door are mounted to the cedar-clad band above. The matching cedar planters and the slim concrete walk path are part of the same package and were stained at the same time to keep all the wood elements reading as one material.

Why a cedar-clad garage door makes sense in LA

Three reasons we keep getting asked for this style on LA hillside and modern-traditional homes:

It changes the entire front elevation. The garage is the biggest single surface on most homes and changing it from a stamped steel panel to a real wood surface lifts the whole property visually — including in listing photos and Google Street View.

Cedar handles LA weather. Western red cedar is naturally rot and insect resistant, holds stain well, and does not warp in our dry summers the way pine or fir would.

You keep the function of a sectional door. The build is engineered so the door still lifts on the original spring system. No replacing the opener, no swing-out clearance, no daily compromise.

Code, longevity, and care

The cedar adds weight to the door so the torsion spring and track were spec’d to handle it; we always check existing hardware first and replace where needed before cladding. Stained surface lasts 3-4 years on a heavily exposed wall before it wants a refresh coat — we sand lightly and re-oil; it never needs to be stripped. Raw cedar left natural will silver to a soft driftwood gray in about 12-18 months in LA sun, also gorgeous and basically maintenance free.

Thinking about a cedar garage door?

If your garage door is the first thing visitors see and you are tired of it being a stamped metal panel that ages out faster than the rest of the house, cedar cladding is one of the highest-impact upgrades you can make. We design and build to your geometry, match the stain to your existing trim, and handle the structural side so the door keeps working like a door. Send a few photos and the rough opening; we will come out the same day for a free on-site estimate.
