Detailed Guide: Building a Wire Panel Railing System

Durable, Aesthetic, and Functional Railings for Decks and Outdoor Spaces

ARTICLES

12/15/20243 min read

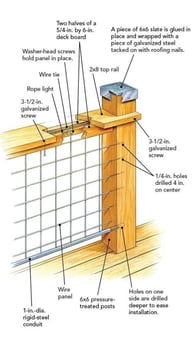

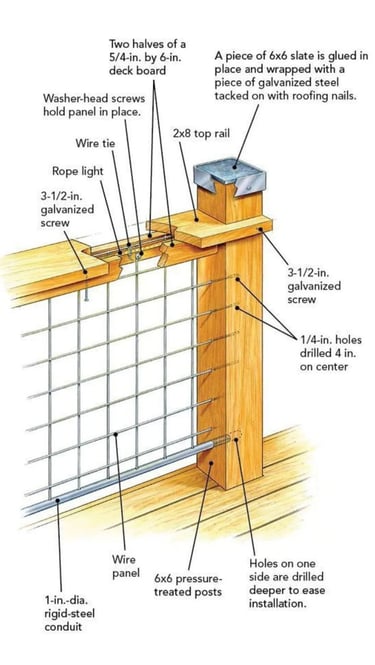

Modern railing systems, like the one illustrated here, combine strength, durability, and visual appeal. By using wire panels, galvanized steel, and wood, this method ensures safety while maintaining an open and airy look. Below is a step-by-step guide and key details about this technology.

Materials Required

To replicate this system, gather the following materials:

6x6 pressure-treated posts – Structural support.

1-in. diameter rigid steel conduit – Bottom reinforcement.

Wire panels – Provides a durable safety barrier.

Deck boards (5/4-in. x 6-in.) – For the top trim and finishing.

2x8 top rail – Serves as the main railing cap.

3-1/2-inch galvanized screws – Rust-resistant fastening.

Galvanized steel wrapping – For post tops, protects from moisture and wear.

Slate or cap piece (6x6) – Optional, glued for weatherproofing and style.

Rope lights – Optional for illumination.

Wire ties – Secure wire panels in place.

Washer-head screws – Holds wire panels tightly.

Tools Needed

Drill with various bits (including 1/4-inch for pilot holes)

Circular saw or miter saw

Measuring tape

Level

Screwdriver or impact driver

Wire cutters

Roofing nails and hammer

Step-by-Step Instructions

Step 1: Prepare the Posts

1. Cut and Place Posts:

Use 6x6 pressure-treated posts as structural supports.

Set them securely in the ground or attach them to your deck framing. Posts should be spaced evenly for visual symmetry and panel support.

2. Drill Holes for the Conduit:

Drill 1/4-inch holes on the posts where the wire panels and conduit will be secured.

Holes should be 4 inches on center to maintain uniform spacing.

Tip: Drill one side deeper to make conduit installation easier.

Step 2: Install the Bottom Rigid Steel Conduit

1. Cut the 1-inch diameter rigid steel conduit to fit between posts.

2. Insert the conduit into the drilled holes at the bottom of the posts.

The steel conduit adds structural integrity and supports the wire panel.

Step 3: Attach the Wire Panels

1. Measure and Cut the Panels:

Use wire panels to match the dimensions between your posts.

Panels should fit snugly, with no gaps.

2. Secure the Panels:

Fasten the panels using washer-head screws to hold them firmly in place.

For added support, tie the panels to the posts or conduit using wire ties.

Use a level to ensure the panels are straight.

Step 4: Add the Top Rail and Trim

1. Install the 2x8 top rail horizontally across the top of the posts.

Align it carefully for a clean, level finish.

Attach the top rail using 3-1/2-inch galvanized screws for durability.

2. Deck Board Trim:

Cut a 5/4-in. x 6-in. deck board into two halves and fit them on either side of the top rail.

These boards add visual appeal and cover the screws, creating a smooth handrail.

Step 5: Protect the Top of Posts

1. Cut a 6x6 slate cap (optional) to fit the post tops.

2. Wrap the slate cap with galvanized steel, securing it with roofing nails.

This prevents water damage and prolongs the life of the posts.

Step 6: Optional Rope Light Installation

1. If desired, install rope lights along the underside of the railing or trim.

2. This provides subtle lighting for outdoor spaces, enhancing safety and ambiance at night.

Why This Railing System?

1. Durability:

Pressure-treated wood and galvanized materials are highly resistant to weather and moisture.

2. Aesthetics:

The combination of wire panels and wooden trim creates a modern, clean look without obstructing views.

3. Functionality:

Provides reliable safety for decks, patios, and stairs while maintaining openness.

4. Customizable:

This system can be tailored to different heights, widths, and designs to suit any outdoor project.

Conclusion

This railing system is a perfect blend of style and function. Whether you’re enhancing your deck, patio, or stairway, it offers a practical and visually appealing solution.
