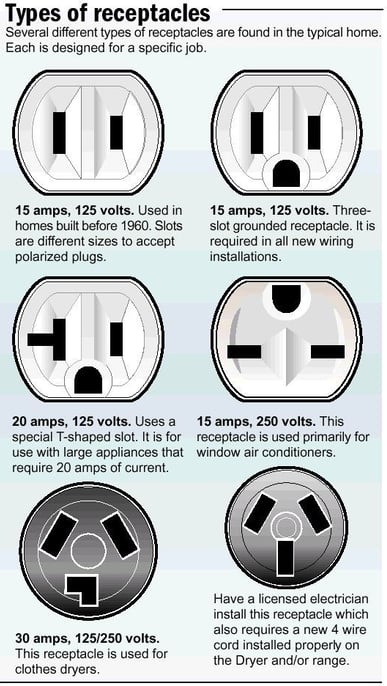

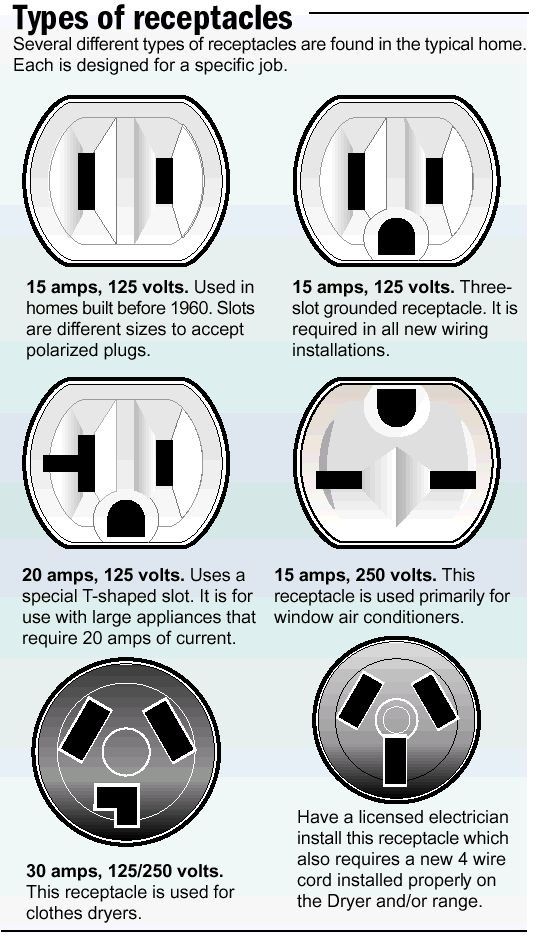

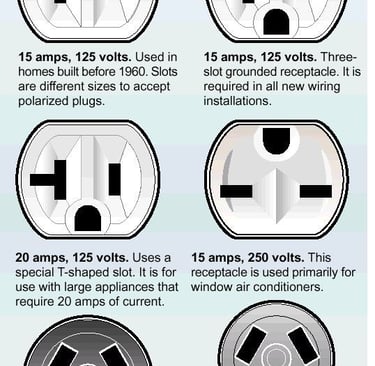

Understanding the Types of Receptacles in Your Home

Each type of receptacle is designed for specific applications, ensuring compatibility with various voltage and amperage requirements. Here’s a guide to help you identify and understand the common receptacles used in homes:

1. 15 Amps, 125 Volts (Pre-1960 Homes)

• Description: Found in homes built before 1960, this outlet has two slots of different sizes to accept polarized plugs.

• Application: Basic power needs for small appliances and lamps.

2. 15 Amps, 125 Volts (Grounded)

• Description: A modern three-slot grounded receptacle, required in all new wiring installations.

• Application: Provides safer connections for devices that need grounding, such as computers and kitchen appliances.

3. 20 Amps, 125 Volts

• Description: Recognizable by its T-shaped slot, this receptacle is designed for appliances requiring 20 amps of current.

• Application: Often used for heavy-duty devices like refrigerators and power tools.

4. 15 Amps, 250 Volts

• Description: Specially designed for higher voltage needs, such as air conditioners.

• Application: Window-mounted air conditioning units or other high-voltage appliances.

5. 30 Amps, 125/250 Volts

• Description: Used for large appliances such as clothes dryers, this outlet requires a four-wire cord installed properly.

• Application: Heavy-duty devices, including dryers and electric ovens.

• Important: Must be installed by a licensed electrician to ensure safety.

Why the Right Outlet Matters

1. Safety: Using the wrong receptacle for an appliance can lead to overheating, fires, or damage to your equipment.

2. Efficiency: Proper outlets ensure optimal performance of your appliances.

3. Compliance: Modern homes must meet electrical code requirements, including the installation of grounded outlets.
