Understanding the Anatomy of a Toilet: Key Components and Their Functions
A toilet might seem simple, but it is a well-engineered fixture with various components working together to ensure proper operation. Below is a breakdown of the main parts of a toilet and how they function.
ARTICLES
1/18/20251 min read

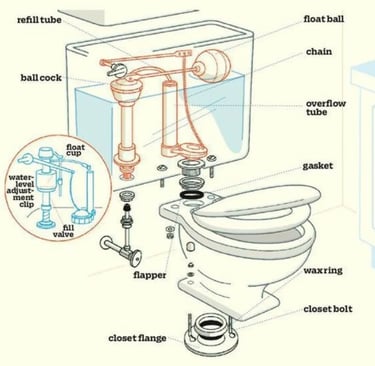

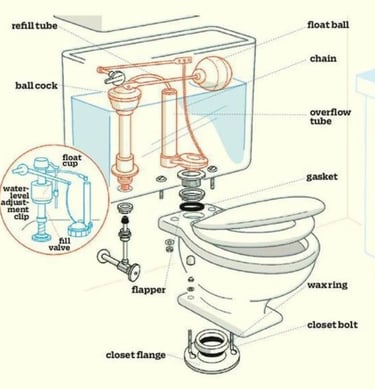

1. Toilet Tank Components
The tank stores water used for flushing and houses mechanisms for refilling and stopping water flow.
• Refill Tube: Refills the water in the bowl after a flush.
• Float Ball: Floats on top of the water in the tank and shuts off the fill valve once the water reaches a specific level.
• Ball Cock (or Fill Valve): Controls the flow of water into the tank.
• Float Cup (Alternative): Another design for controlling water levels in modern toilets.
• Chain: Connects the flush lever to the flapper, lifting it during a flush.
• Overflow Tube: Prevents the tank from overflowing by directing excess water into the bowl.
2. Toilet Bowl Components
The bowl directs waste into the sewer system while maintaining a water seal to prevent sewer gases from entering the bathroom.
• Flapper: A rubber valve at the base of the tank that lifts to release water during flushing.
• Gasket: Creates a watertight seal between the tank and the bowl.
• Wax Ring: Ensures a leak-proof seal between the toilet base and the floor.
• Closet Flange: Secures the toilet to the floor and connects it to the drain pipe.
3. Flush Mechanism
When you press the flush lever, the chain lifts the flapper, allowing water from the tank to rush into the bowl. This force pushes waste through the trapway and into the sewer system.
4. Common Adjustments
• Water Level Adjustment: Done via the float ball or float cup to control how much water fills the tank.
• Flush Power: Controlled by ensuring the flapper closes properly and the fill valve works efficiently.
Importance of Each Component
Every part of the toilet plays a vital role in ensuring proper flushing, refilling, and sealing to prevent leaks and odors. Regular maintenance, such as checking the flapper and wax ring for wear, ensures your toilet operates efficiently for years.
