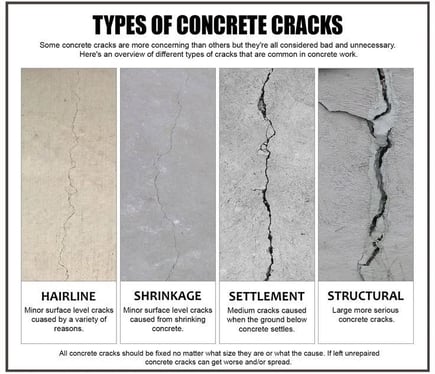

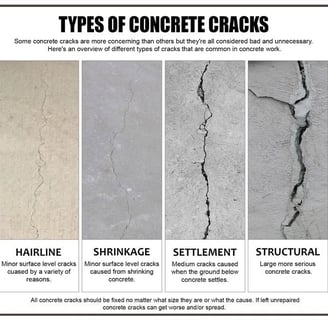

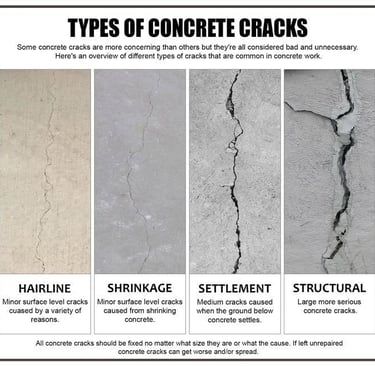

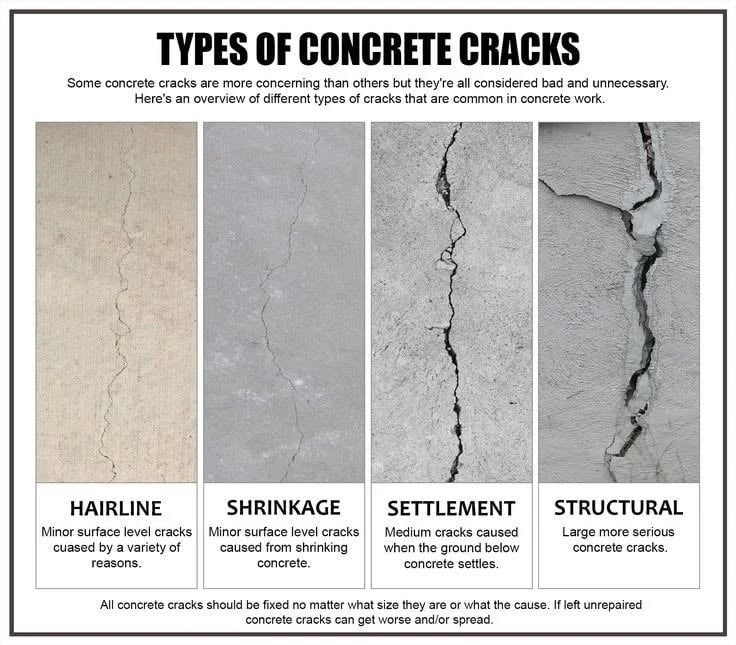

Types of Concrete Cracks

Some concrete cracks are more concerning than others, but all are considered undesirable and should not be ignored. Below is an overview of the types of concrete cracks, their causes, consequences, and repair methods.

1. Hairline Cracks

Causes:

• Rapid drying of concrete during curing.

• Temperature fluctuations causing expansion and contraction.

• Improper finishing techniques or insufficient water content in the mix.

Consequences:

• Primarily aesthetic, but can allow moisture penetration over time.

• May lead to further cracking or surface damage if ignored.

Repair Method:

• Use a concrete crack filler or epoxy injection for small cracks.

• Apply a concrete sealant to prevent moisture infiltration and further damage.

2. Shrinkage Cracks

Causes:

• Excessive moisture loss from concrete during the curing process.

• Overuse of water in the concrete mix.

Consequences:

• Surface damage that may compromise the top layer over time.

• Water infiltration can cause freeze-thaw damage in colder climates.

Repair Method:

• Fill cracks with a polyurethane or epoxy compound.

• Use proper curing techniques, such as moisture retention methods, during new concrete installation.

3. Settlement Cracks

Causes:

• Uneven settling of the ground beneath the concrete slab.

• Poor soil compaction or erosion under the surface.

Consequences:

• Uneven surfaces can become tripping hazards.

• Can progress into more severe cracks, destabilizing the slab.

Repair Method:

• Use epoxy or polyurethane filler for minor cracks.

• For significant settlement, consider slab lifting (mudjacking) or replacing the affected section.

• Improve soil stabilization and compaction before pouring new concrete.

4. Structural Cracks

Causes:

• Excessive load or stress on the concrete.

• Inadequate reinforcement or poor structural design.

• Foundation movement due to shifting soils.

Consequences:

• Significant weakening of the structure, which can result in partial or complete failure.

• Water infiltration leading to rebar corrosion and further degradation.

Repair Method:

• Consult a structural engineer for a professional assessment.

• Repair cracks using epoxy injection and reinforce with steel plates or carbon fiber straps.

• Replace severely damaged sections of concrete as needed.

Prevention and Maintenance Tips

• Proper Curing: Ensure sufficient moisture retention during concrete curing to minimize shrinkage cracks.

• Soil Compaction: Thoroughly compact the soil before pouring concrete to prevent settlement cracks.

• Reinforcement: Use adequate reinforcement (rebar or mesh) to reduce structural cracks.

• Regular Sealing: Apply a concrete sealant periodically to protect against moisture and freeze-thaw damage.

• Early Repairs: Address small cracks early to prevent costly repairs in the future.
