Step-by-Step Guide to Building a Timber Frame Pergola

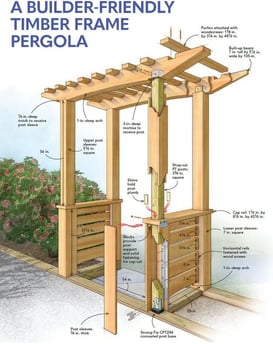

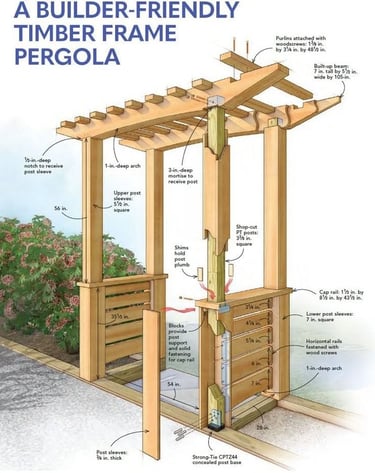

Building a timber frame pergola can enhance your outdoor space, providing both functionality and style. Here’s a step-by-step guide inspired by the builder-friendly diagram provided:
ARTICLES
1/17/20251 min read
Materials Needed
• Wood:
• Pressure-treated posts (3 ½” square)
• Upper and lower post sleeves (5 ½” square)
• Horizontal rails and cap rails
• Built-up beams and purlins
• Hardware:
• Strong-Tie CPTZ44 concealed post base
• Wood screws
• Shims for adjustment
• Tools:
• Drill, saw, measuring tape, level, and clamps.
Step 1: Plan and Measure
1. Determine Pergola Dimensions:
• Decide on the pergola height, width, and depth based on your space and needs.
2. Prepare the Site:
• Mark the area and ensure it’s level.
• Dig holes for the posts and set post bases in concrete.
Step 2: Set the Posts
1. Install Post Bases:
• Use Strong-Tie CPTZ44 concealed post bases to anchor the posts securely.
2. Cut and Install Posts:
• Shop-cut PT posts to 3 ½” square and 54” height (for lower section).
• Place posts into the base, ensuring they are plumb using a level.
3. Add Post Sleeves:
• Slide 5 ½” post sleeves over the posts for additional support and aesthetics.
Step 3: Frame the Structure
1. Add Horizontal Rails:
• Attach horizontal rails between posts, creating the framework.
• Secure with wood screws and blocks for extra support.
2. Install Cap Rails:
• Place 1 ½” x 8 ½” cap rails on top of the framework.
3. Create Decorative Details:
• Use a 1”-deep arch design for additional style.
Step 4: Build the Roof
1. Assemble Beams:
• Build up the beams to 7” tall by 5 ½” wide.
• Secure beams to posts using 3” mortises and wood screws.
2. Add Purlins:
• Attach purlins (1 ⅜” x 3 ¾”) on top of the beams.
• Space them evenly for support and aesthetics.
3. Finish with Details:
• Cut decorative ends for the beams and purlins if desired.
Step 5: Final Adjustments
1. Ensure Stability:
• Use shims to hold posts plumb.
• Double-check all connections for stability.
2. Finish the Wood:
• Sand any rough edges and apply a weatherproof finish or stain.
Tips for Success
• Safety First: Always wear protective gear and follow safety protocols.
• Materials: Opt for treated wood for durability and resistance to outdoor conditions.
• Maintenance: Inspect and reseal the pergola annually to ensure longevity.
