Step-by-Step Guide to Building a Gazebo:

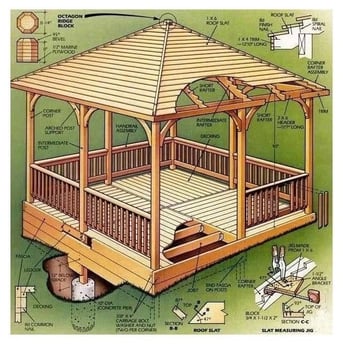

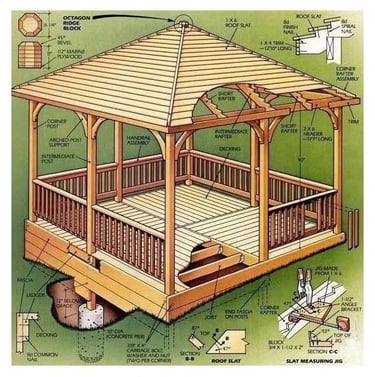

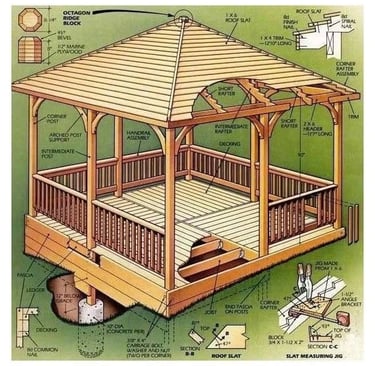

Building a gazebo can be an excellent way to add a functional and stylish outdoor feature to your property. Here’s a detailed guide based on the design in the image you provided:

ARTICLES

1/17/20251 min read

1. Planning and Preparation:

Design: Decide on the size and shape of the gazebo (octagonal, square, etc.).

Materials: Gather pressure-treated wood, marine-grade plywood, nails, screws, and roofing materials.

Tools Needed: Circular saw, hammer, power drill, level, measuring tape, and jigsaw.

Permits: Check with local authorities if permits are required for construction.

2. Foundation:

Footings: Dig holes for concrete footings to support the structure. These should be below the frost line for stability.

Concrete Pads: Pour concrete into the footings, ensuring they are level and evenly spaced.

3. Building the Base Frame:

Construct a sturdy base using beams and joists. This will serve as the platform for the gazebo.

Secure the frame to the footings using anchor bolts.

Add decking boards over the frame, ensuring they are tightly fitted and level.

4. Erecting Corner and Support Posts:

Place corner posts into the footings, ensuring they are plumb (vertical).

Use braces to temporarily hold the posts in place while attaching horizontal supports.

5. Assembling the Roof:

Construct the roof frame by cutting rafters to the desired angles.

Attach the rafters to a central ridge block for an octagonal roof or a ridge beam for a rectangular roof.

Cover the frame with marine-grade plywood and finish with shingles, tiles, or metal roofing.

6. Adding Rails and Balusters:

Install handrails between the support posts to define the gazebo’s perimeter.

Attach balusters (vertical slats) beneath the railings for safety and aesthetics.

7. Finishing Touches:

Add decorative elements, such as trim, brackets, or lattice panels.

Paint or stain the gazebo to protect the wood from weathering.

Install optional features like lighting, curtains, or built-in benches.

Tips for Success:

Stability: Ensure the structure is properly anchored to withstand wind and other environmental factors.

Materials: Use weather-resistant wood and finishes to prolong the life of the gazebo.

Roof Pitch: Choose an appropriate pitch for the roof to ensure water drainage.
