How to Build a Concrete Block Retaining Wall

A concrete block retaining wall is a sturdy and attractive solution for controlling soil erosion, creating terraced gardens, or leveling a sloped yard. With the right planning and techniques, you can build a durable retaining wall that enhances your landscape. Here’s a step-by-step guide on how to build a concrete block retaining wall like a pro.

ARTICLES

2/28/20252 min read

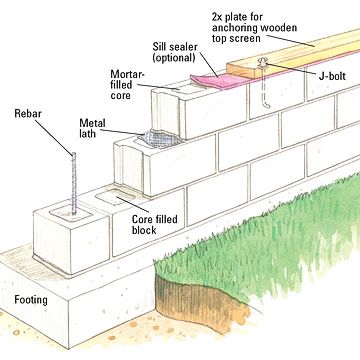

a diagram of a brick wall with a picture of a brick wall
a diagram of a brick wall with a picture of a brick wall

1. Why Build a Concrete Block Retaining Wall?

  • Erosion Control: Retaining walls prevent soil erosion on sloped landscapes.

  • Aesthetic Appeal: They create visually appealing terraces, garden beds, and leveled yard areas.

  • Structural Support: They provide necessary structural support to keep soil from shifting.

2. Tools and Materials Needed

  • Tools:

    • Shovel and wheelbarrow

    • Level and measuring tape

    • Mason’s string and stakes

    • Trowel and masonry hammer

    • Concrete mixer (optional) or mixing tub

  • Materials:

    • Concrete blocks (hollow core for reinforcement)

    • Rebar (for structural reinforcement)

    • Mortar mix

    • Gravel (for base and drainage)

    • Metal lath (for mortar-filled cores)

    • J-bolts and sill sealer (if anchoring a wooden top plate)

3. Planning and Design

  • Determine Wall Height and Length: Measure the area and calculate the number of blocks needed. For walls over 4 feet high, consult an engineer for safety.

  • Check Local Building Codes: Permits may be required for retaining walls over a certain height.

  • Excavation and Drainage: Proper drainage is crucial to prevent hydrostatic pressure, which can cause wall failure.

4. Prepare the Foundation

  • Excavate the Base: Dig a trench at least twice as wide as the blocks and deep enough for the gravel base and the first layer of blocks (about 6-8 inches deep).

  • Add Gravel Base: Fill the trench with 4-6 inches of gravel and compact it using a tamper. Ensure the base is level.

  • Lay the First Course: Place the first row of concrete blocks on the gravel base. Check for level and alignment.

5. Build the Wall

  • Stagger the Joints: Offset each row so that the joints between blocks don’t line up, increasing stability.

  • Insert Rebar: Place vertical rebar into the hollow cores for reinforcement. The rebar should extend into the footing and rise above the top course.

  • Fill Hollow Cores: For added strength, fill the hollow cores with concrete or mortar mix.

  • Add Metal Lath: Insert metal lath into mortar-filled cores for added structural support.

  • Mortar Application: Apply mortar between each block layer using a trowel for a secure bond.

6. Finishing Touches

  • Cap Blocks: Install cap blocks on the top row using construction adhesive or mortar for a finished look.

  • Backfill and Compact: Backfill behind the wall with gravel for drainage and compact it firmly.

  • Optional Wooden Top Plate: If adding a wooden top plate, anchor it using J-bolts embedded in the mortar-filled cores.
