How to Adjust Cabinet Hinges for a Perfect Fit
Having misaligned cabinet doors can be frustrating, but the solution is often as simple as adjusting the hinges. Modern hinges allow for easy adjustments in three directions: side-to-side, up-and-down, and in-and-out (depth). Here's a step-by-step guide to getting your cabinet doors perfectly aligned.
ARTICLES
2/5/20251 min read
Tools You’ll Need:
A Phillips or flathead screwdriver
A spirit level (optional, but helpful for accuracy)

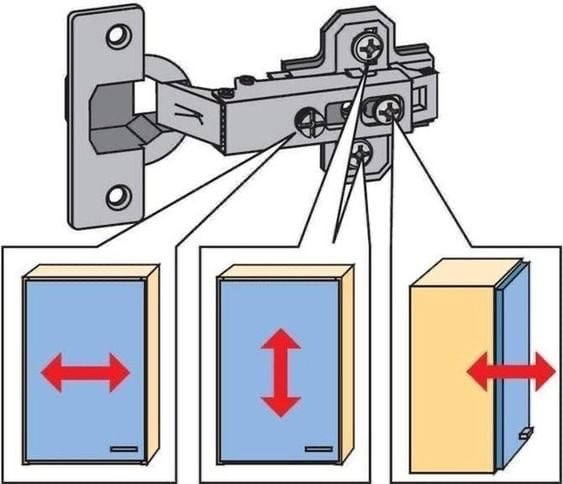

Understanding the Adjustment Screws
Side-to-Side Adjustment:
Use the screw closest to the cabinet’s frame to move the door left or right.
Turn the screw clockwise to move the door inward (toward the hinge side).
Turn it counterclockwise to move the door outward (away from the hinge side).
Up-and-Down Adjustment:
Loosen the screws that secure the hinge plate to the cabinet.
Move the entire hinge plate up or down as needed.
Tighten the screws to secure the new position.
In-and-Out (Depth) Adjustment:
Use the screw furthest from the cabinet’s frame to move the door closer to or further from the cabinet box.
Turn the screw clockwise to pull the door closer.
Turn it counterclockwise to push the door outward.
Step-by-Step Instructions
Inspect the Alignment:
Look for gaps or uneven spacing between the cabinet doors and the frame.
Identify whether the misalignment is vertical, horizontal, or depth-related.
Adjust Side-to-Side:
Turn the side-to-side screw on both hinges slightly and check the alignment.
Make small adjustments to avoid over-correcting.
Adjust Up-and-Down:
Loosen the mounting screws slightly and shift the door to the correct position.
Retighten the screws once the door is aligned.
Adjust Depth:
Use the depth screw to align the door flush with the cabinet box.
This is especially important to prevent the door from sticking out or being recessed.
Test the Door:
Open and close the cabinet door several times to ensure smooth operation.
Check for even spacing and proper fit.
Pro Tips
Make adjustments incrementally to avoid over-correcting.
Use a spirit level to ensure the door is perfectly aligned with adjacent doors.
If the hinges are old or worn, consider replacing them for better functionality.
Perfectly aligned cabinet doors not only enhance the aesthetics of your kitchen or bathroom but also improve functionality. If you encounter any difficulties or need professional assistance, don’t hesitate to reach out!
