Building a Durable Floor Frame: Key Principles and Best Practices

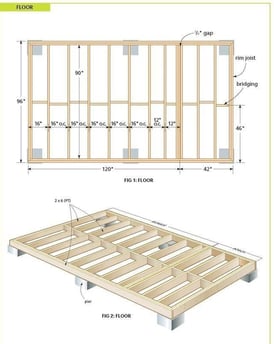

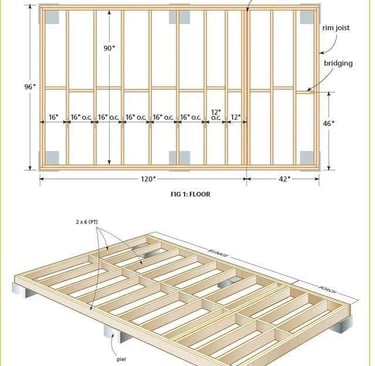

he image above demonstrates the proper way to create a floor frame, including essential details like joist placement, rim joists, and gaps. Let’s dive into the key factors that make a solid floor frame and why gaps are necessary, especially for larger structures.

Key Components of Floor Framing

1. Joists and Rim Joists:

• Joists are the horizontal beams that support the floor. They are evenly spaced, typically at 16 inches on center (O.C.), to ensure even load distribution.

• Rim joists form the outer edge of the frame, securing the ends of the joists and providing structural integrity.

2. Blocking and Bridging:

• These components are placed between joists to reduce twisting and improve stability.

3. Support Piers:

• These are the vertical supports that hold up the floor frame. They must be securely placed on a stable foundation, such as concrete or gravel.

4. Gaps:

• The diagram above shows a ¾-inch gap between certain sections. But what about gaps over longer distances, like every 120 feet?

Why Are Gaps Necessary?

Gaps are essential in floor framing for several reasons:

1. Thermal Expansion and Contraction:

• Wood, composite materials, and even metal expand and contract with temperature changes. Over large areas, this expansion can cause materials to buckle or warp. Adding gaps allows the structure to “breathe,” reducing the risk of damage.

2. Moisture Absorption:

• In humid or wet environments, wood can absorb moisture and expand. Without proper gaps, this can lead to cracking, bowing, or long-term structural damage.

3. Stress Relief:

• For expansive floor frames, such as those over 120 feet, additional gaps help relieve internal stresses that may build up due to load and environmental factors.

4. Improved Drainage and Ventilation:

• Gaps promote water drainage, preventing water pooling that can lead to rot. They also improve airflow under the structure, which helps maintain the longevity of the materials.

5. Code Compliance:

• In many areas, building codes require specific gaps for decks and floor frames, especially for outdoor or elevated structures.

Additional Factors to Consider

1. Material Type:

• If you’re using composite decking or pressure-treated wood, consult the manufacturer’s recommendations for proper gap spacing.

2. Climate Conditions:

• In regions with significant temperature fluctuations or high humidity, prioritize larger gaps to accommodate these environmental changes.

3. Load Requirements:

• Structures designed for heavy use, such as outdoor kitchens or storage sheds, benefit from strategically placed gaps to reduce stress.

4. Symmetry:

• Maintain uniform gaps throughout the frame for a clean, professional look and balanced structural integrity.

5. Durable Fasteners:

• Use corrosion-resistant screws or bolts, such as galvanized or stainless steel, to withstand movement and weather exposure.

Conclusion

Building a strong and durable floor frame is an investment in the longevity of your project. Incorporating proper gaps ensures that your structure can withstand environmental challenges and heavy use without compromising safety or aesthetics. If you have a project in mind or need professional assistance with your floor framing, we’re here to help.
